JACKS AND PLUGS
FAX: 773 792-2129 .141" MINIATURE PHONE PLUGS
* Please visit the product pages on our website for the most up-to-date product information
157

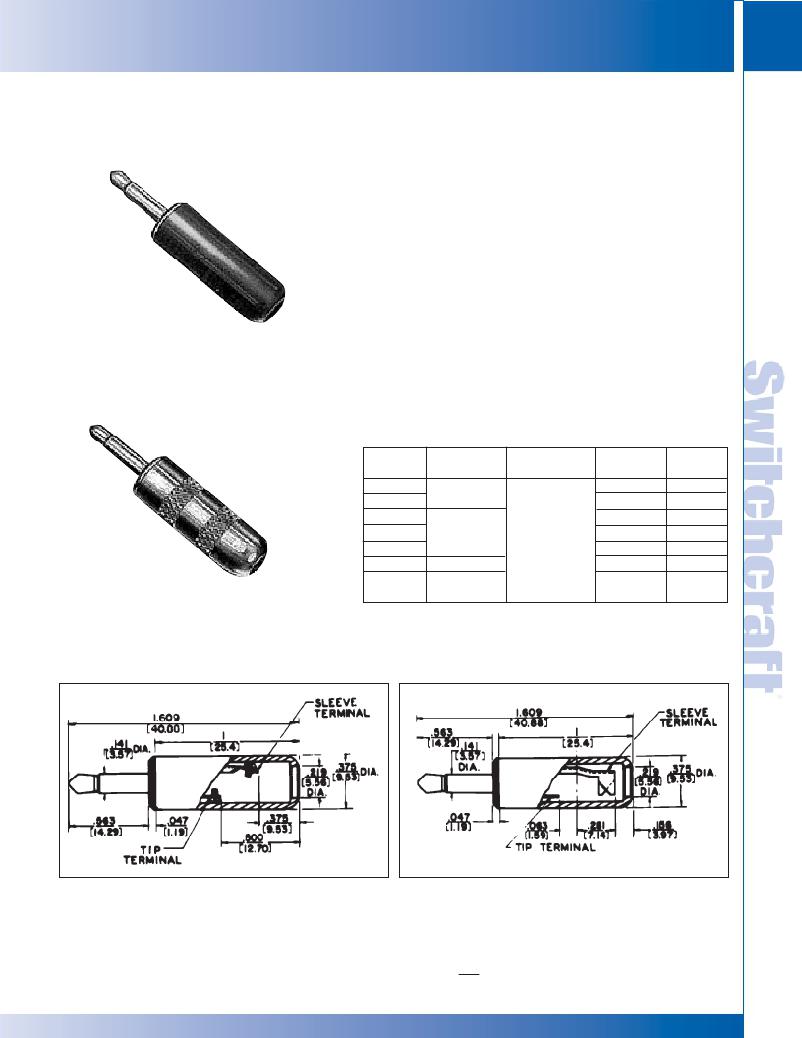

.141" MINIATURE PHONE PLUGS
Number 750
Part
FEATURES
? Miniature 2-conductor Phone Plug for use with Switchcraft
Tini-Jax ? miniature phone jacks. About 1/2 the size of
Switchcraft Littel-Plug ? phone plug. Average net weight,
1/8 ounce.
? Various terminal combinations: (a) Dual purpose sleeve
terminal may be clamped over metal braid or shielded
cables; provides cable anchor. Easily soldered for perfect
electrical connection. (b) Screw terminal design (no cable
clamp) for cable. Terminals that can be more suitably
connected by screws.
? 1-piece tip rod staked into mating terminals; no disassembly
of tip during use of plug. Terminals and body of plug
interlocked mechanically.
? Available in black or red plastic handles or brass nickel-
plated handles for shielding. Can be used with cables up
to .188" outside diameter.
SPECIFICATIONS
Sleeve, Tip and Body: Nickel-plated copper alloy.
Terminals: Copper alloy, electro-tinned. Solder lug or
screw type (Screws #0-80).
Handle: Molded black or red plastic.
Copper alloy, nickel-plated.
Typical
Number
740
745
750
755
2P1384
770
780
Terminals
Screw 2
Solder Lug &
Cable Clamp
Screw 2
Solder Lug &
Mating Jack 1
41
Handle
Black
Red
Black
Red
Less Handle
Shielded
Shielded
Part No.
M1055
M1056
M1055
M1056
–
T13631
T13631
Number 780
No. 740
1. Other mating plugs are available.
2. Switchcraft replacement Part Number P1153 . 2 screws required per plug.
Cable Clamp
No. 750
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
